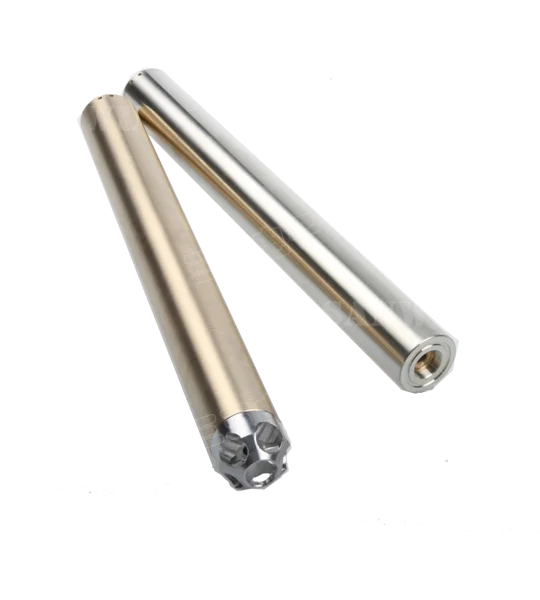

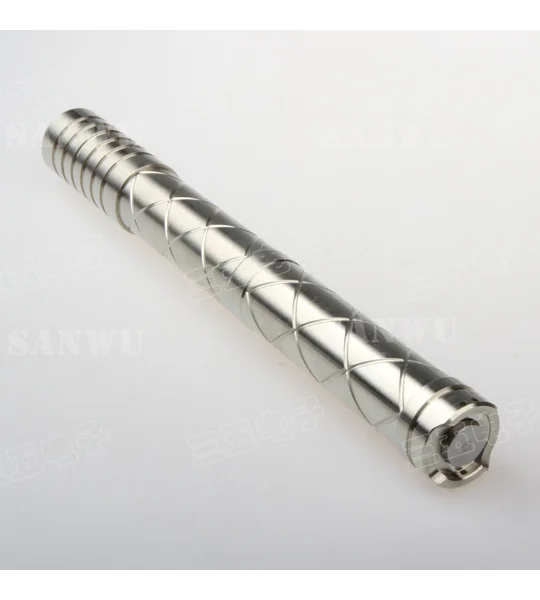

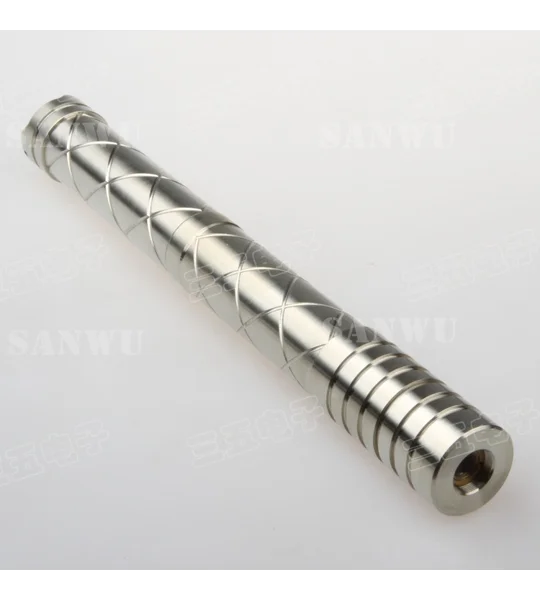

Silver Series - Our Classic Full Copper Chassis Design

Copper – An Excellent Heat Dissipater

The Silver series rapidly cools down after using the powerful laser diode! The full copper chassis comes in two stylishly engraved housings! The Silver is powered by two 18650 li-ion batteries which guarantees a long run time and duty cycle or two 18350 batteries for less weight.

Intelligent Laser Driver

We developed our first intelligent driver specifically for the Silver to improve the average performance and output stability of a handheld laser. Our multi-function driver monitors and adjusts the power consumption continuously to preserve the laser diode and the driver!

Satisfaction Guarantee

As one of the leading handheld laser manufacturers, we always ensure top-notch quality of all of our products.

Laser Function

How to Power the Laser On

Silver is powered by 2x18650 protected lithium-ion batteries or 2x18350 unprotected 18350 li-ion batteries(after removing one of its battery extenstion tube). Insert the batteries with the positive side going in first. Next, screw on the base cap and press the power button to operate the laser.

Single-Operation Mode & Multi-Operation Mode

Single-operation mode lasers runs in full power mode only.

Multi-Operation mode lasers has five unique settings with an additional electronic safety lock function.

The five unique operational modes cycle in the below order:

Low Power > Half Power > Strobe > Full Power > Emergency SOS > and back to Low Power

How to Access the Multi-Operation Functions

Half-press the button once to enter the next operational mode.

Electronic Safety Lock(For multi mode only)

To prevent unauthorized use, half-press the button three times within the first three seconds immediately after the laser light is visible. The laser should switch to strobe mode before entering the safety lock(dim laser dot).

Unlocking the Laser

Power on the laser and wait one second. Next, half-press the button five times within three seconds and then wait another 2 seconds. The laser should now switch to strobe mode indicating that the laser is unlocked.

Memory Function

The laser memorizes the operational mode last used for more than five seconds. This feature allows you to start the laser into the last operating mode without entering the button sequence pattern.

Adjustable Focus

The Guardian laser has a fully adjustable focus. Just twist the attack head located at the top of the laser to adjust the beams focus.

Battery Protection

Our lasers come with several battery protections to protect the laser and the battery: over-discharge protection, over-charge protection and reverse polarity protection.
